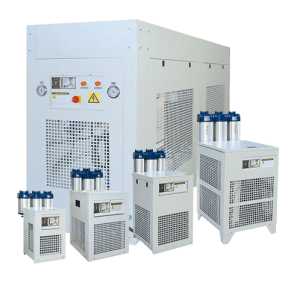

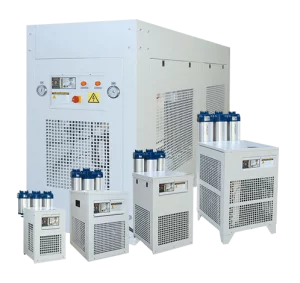

Air Dryers

Air Dryers, Air Tanks and Air filters saves your production from water and oil steam to the system. All our tanks have necessary certificates and approved by CE – ASME.

» 0.5 PPM and 1 Micron filters included
» Small foot print with full components installed in
» Perfect result of air-oil-water separation
» Mikro chip controlled cooling adjustment on ambient temperature or seasonal changes
» Nature friendly

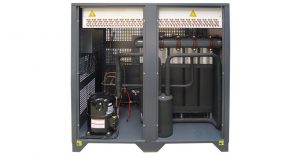

Air Dryers

Air Dryers

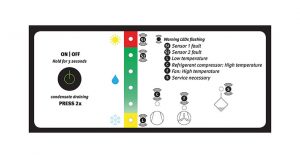

Air Dryer Control

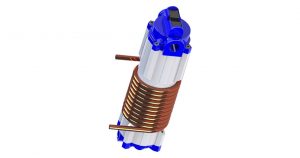

Air Dryer Heat Exchanger

	MODEL	CAPACITY				MOTOR POWER	CONNECTION	SIZE	WEIGHT
		Bar	V/Ph/Hz	Gas	Capacity	Hp/Kw		W x L x H
	EC 900	16	230/1/50	R-134 a	900 lt	1/5	1/2 "	415325540 mm	30 kg
	EC 1200	16	230/1/50	R-134 a	1200 lt	1/5	1/2"	415325595 mm	31 kg
	EC 1800	16	230/1/50	R-134 a	1600 lt	1/4	3/4"	415325625 mm	32 kg
	EC 2200	16	230/1/50	R-134 a	2200 lt	1/4	3/4"	415325662 mm	32 kg
	EC 2600	16	230/1/50	R-134 a	2600 lt	3/8	1"	558458695 mm	44 kg
	EC 3100	16	230/1/50	R-134 a	3100 lt	3/8	1"	558458724 mm	45 kg
	EC 3700	16	230/1/50	R-134 a	3700 lt	1/2	1"	558458755 mm	47 kg
	EC4000	16	230/1/50	R-134 a	4000 lt	1/2	1"	558458755 mm	48 kg
	EC 5500	16	230/1/50	R -134 a	5500 lt	3/4	1,5"	652505997 mm	83 kg
	EC 6500	16	230/1/50	R -134 a	6500 lt	1	1,5"	652505997 mm	83 kg
	EC 8500	16	400/3/50	R404A	8500 lt	2	2"	8705901200 mm	140 kg
	EC 11000	16	400/3/50	R404A	11000 lt	2	2"	8705901200 mm	140 kg
	EC 13000	16	400/3/50	R404A	130000 lt	2,5	2"	8527341191 mm	150 kg
	EC 18000	16	400/3/50	R404A	18000 lt	3	2"	8527341191 mm	180 kg
	EC 25500	16	400/3/50	R404A	25500 lt	4	3"	11027821382 mm	275 kg
